Helibug 550e Gasser

for Align Trex550E w/ OS GT15HZ Engine



Browse our Catalog

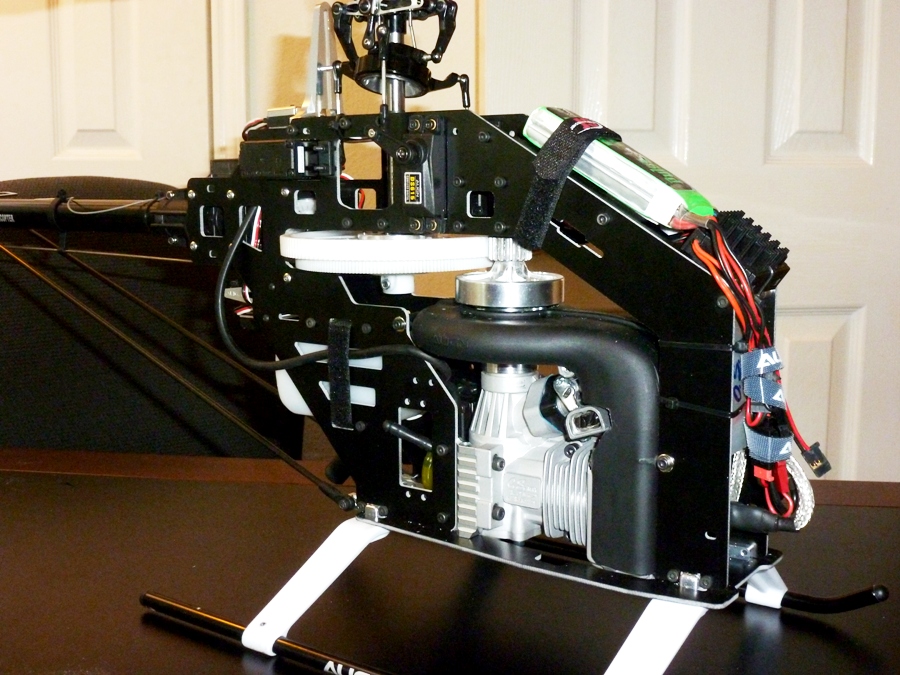

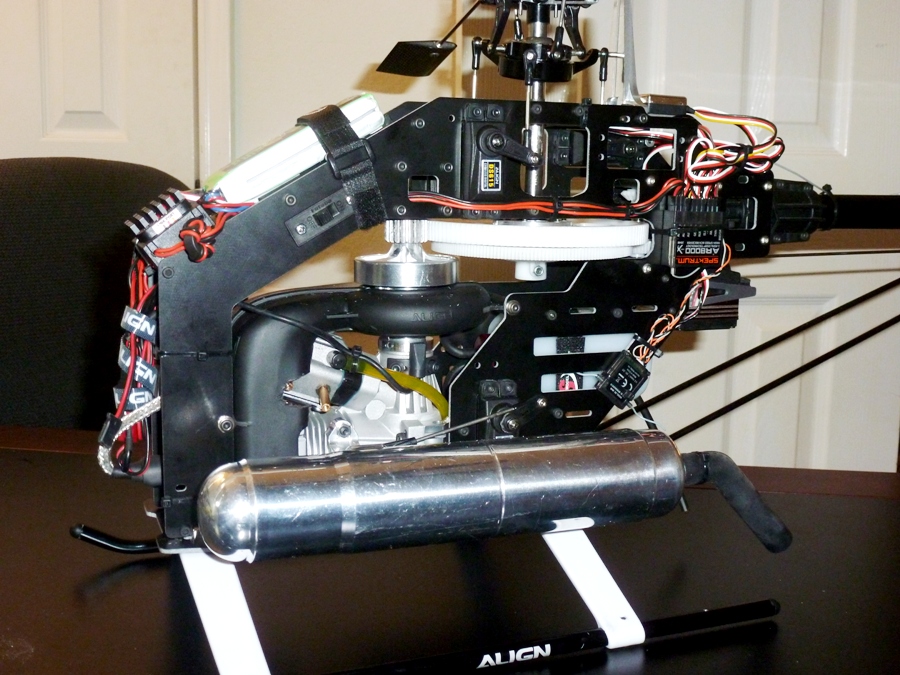

Helibug Trex550E With OS GT15HZ Engine



Available NOW !!

Smallest Gas Powered RC Helicopter in the World !



REMEMBER: GT15HZ IS A TOTAL WASTE OF MONEY - UNLESS YOU CAN KEEP BUYING THE ENGINE ON EVERY FAILURE

 OTHERWISE GT15HZ ENGINE IS 'HIGHLY NOT RECOMMENDED'

OS is a Japanese engine...but, GT15HZ, for some reason, dont stop acting like a Chinese manufactured product !





Conversion kit includes:

  2x Side Frames

  1x Base Plate

  1x 18T Helical Pinion (Gear Ratio 6.22)


Price =    $249.99  - OUT OF STOCK
(Kit Only - does not include "Required Parts)
NOTE: This conversion is a personal project - there is no support available for this conversion kit






Required Parts to Complte:

You will need the following parts from the New Trex700 Nitro (V2) and few from older Trex700 Nitro (V1) to complete the conversion

1. Clutch bell HN7038
2. Start Shaft HN7036
3. 112T Helical Main Gear H70020B (OR LX0261 FROM LYNX)
4. Clutch mount HN7082
5. Clutch HN7039
6. Fan HN7052
7. Fan Shroud H7NB011XXW
8. Pinion Bearing Block H7NB010XXW
9. Engine Mount H7NB012XXW
10.Trex550/Trex600 main gear hub upgrade FROM LYNX LX0269 or from Align



Align Trex700 Clutch bell with Blue Liner

The new clutch bell from Align with a 'blue' clutch bell liner is the best upgrade from Align. This clutch bell uses thicker clutch liner. It has a much better gap between the original Trex700 Nitro Clutch and the Clutch Bell.

I highly recommend using Align Trex700 Clutch with the NEW Align Trex700 Clutch bell

There is no need to upgrade to Lynx Gas Clutch as original the "Gap" with the older Align Clutch bell was unacceptable for gasser performance. Also, there is no need to fix any tolerances for the Trex700 clutch to fit into the bell as it is factory adjusted for the best performance.

100% compatibilty with the Trex700, flyers can benefit from not only Lynx Gas Clutch, but, also QuickUK standard and HD clutches along with the Lynx stock Trex700 Clutch.  More choices of clutches to choose from !

This applies to All Helibug Gas Connversion Kits which uses Original Trex700 Mechanics









Here is a sequence of videos taken from the very begining so you can see how the engine reacts when new and how it runs after proper settings



Seventh Flight







Sixth Flight





Fifth Flight







Fourth Flight





Third Flight





Second Flight





First Hover









WARNING: The radio controlled model helicopter built from this conversion kit is not a toy and is not meant for children. It is a flying machine capable of causing property damage and serious bodily harm to both the operator/assembler and/or spectator if not built and operated correctly and responsibly. Rotating components, especially the main rotor blades, are an ever-present danger. Model helicopters operate differently than model cars and airplanes. Helicopters by their nature are not positively stable, meaning that even if properly assembled and adjusted, helicopters will not recover from an unwanted flight attitude, nor will they hold any particular orientation without constant control inputs from the pilot.

IT IS YOUR EXCLUSIVE RESPONSIBILITY TO PROPERLY BUILD, MAINTAIN AND OPERATE HELICOPTER.

HELIBUG has spent considerable time making this product reliable and easy to build, but only the operator can insure that it is safe. Because the safe operation of this helicopter is beyond the control of the Manufacturer and distributor, the owner/operator assumes all risk of use.
